Construction Sound Barrier Blankets: Quilted Fiberglass Panel

Quilted Fiberglass Panel  Absorbers reduce the reflection of sound waves by adding soft, porous, open-celled materials to any environment. IES – 2000 LLC’s Quilted Fiberglass panel products like sound barrier blanket, construction sound blankets consists of various configurations of facing and fiberglass thicknesses to provide solutions to a plethora of applications. Wall panels and overhead baffles are constructed with all edges bound and grommets across the top. Rolls are available 4’ wide x 25’ long and can be supplied with edges bound or unbound. Applications: Typically used when you are trying to reduce the reflection of sound waves or reverberant noise energy within a piece of equipment, a room, or a building. Also used to supplement plywood structures on job sites to improve the transmission loss of the wood as well as to reduce reflected noise on the construction side.

By adding porous and soft materials to any environment, quilted fiberglass panels help reduce the reflection of sound waves. At IES 2000, we offer high-quality fiberglass sound insulation solutions consisting of various configurations. The configurations include different thicknesses and appearances that provide solutions to various applications. Besides, overhead baffles and sound barrier blankets are constructed with all grommets across the top.

We have quilted fiberglass panels that are high performance, fire-safe, and durable. They can be used to reduce reverberant airborne noise and are an excellent alternative to urethane foams. This is because they possess high mechanical strength, exhibit low fire emissions, and are Class A fire rated. Besides, they have a wide temperature range. You can also clean them, and they are unaffected by oils, dirt, dust, humidity, moisture, and most chemicals. Our construction sound blankets have extremely long service lives, will not degrade, and you can install them easily.

Applications of Quilted Fiberglass Panels

  • Quilted fiberglass panels are used in reducing reverberant noise energy or the reflection of sound waves within a building, a room, or a piece of equipment.
  • It is also used to supplement the use of plywood structures on job sites. They typically help reduce reflected noise on construction sites.

Download Product Brochure


QA-1QA-3QA-7QA-10QA-11
Nominal Thickness1"1"2"2"2"
Temperature Range-20° to +180° F-20° to +350° F-20° to +180° F-20° to +180° F-90° to +500° F
Standard Width48"48"48"48"48"
Roll Length50'50'25'25'25'
Weight  .45 # psf.45 # psf.45 # psf
Density1.6 lb/ft^31.6 lb/ft^3
Moisture Permeability    0.5 perms
Flammability / Flame Spread17.662.0717.6617.664.95
Flammability / Smoke Density22.750.4522.7522.7511.43
Frequencies (Hz)ASTM C 423ASTM E-90 & E 413ASTM & C 423ASTM & C 423ASTM & C 423
Class 1 or A per ASTM E84 1 or A per ASTM E841 or A per ASTM E84
NRC rating 0.8 0.850.85
EdgesBound or Unbound Bound or UnboundBound or UnboundBound or Unbound
Available colors   Black, Gray, Tan or White
Octave Band Center Frequencies (Hz)
1250.120.40.070.190.19
2500.470.30.270.990.99
5000.850.780.960.960.96
1K0.841.021.130.80.8
2K0.6411.080.570.57
4K0.61.110.30.3
NRC rating0.70.80.90.090.9
MaterialVinyl coated fiberglass cloth facing / fiberglass batting with non-porous scrim facingNon-woven porous scrim /fiberglass batting with non-woven porous scrim.Vinyl coated fiberglass cloth facing/ fiberglass batting with non-porous scrim facing.Vinyl coated fiberglass cloth facing / fiberglass batting / vinyl coated fiberglass cloth facingSilicone coated fiberglass cloth facing/ fiberglass batting/ Silicone coated fiberglass cloth facing.
StitchingStraight-stitch or diamond quilt patterns
Typical ApplicationsTypically used when you are trying to reduce the reflection of sound waves or reverberant noise energy within a piece of equipment, a room, or a building.Typically used as a sound absorption panel or an acoustical liner. Also used as a decoupler when combined with our 1B Lag Acoustical Pipe & Duct product to enhance its acoustical performance.Typically used when you are trying to reduce the reflection of sound waves or reverberant noise energy within a piece of equipment, a room, or a building.Typically used when you are trying to reduce the reflection of sound waves or reverberant noise energy within a piece of equipment, a room, or a building. Also used to supplement plywood structures on job sites to improve the transmission loss of the wood as well as to reduce reflected noise on the construction side.Silicone faced quilted fiberglass absorbers are typically used to reduce reverberant noise energy within a piece of equipment, room, or building where the product may be subjected to high temperature, sunlight, water or oil. Also used as a high temperature duct wrap, or on an outdoor application where UV resistance is required.

Curtains: Industrial & Flexible Barriers

Download Product Brochure

Acoustic Curtains – ABA

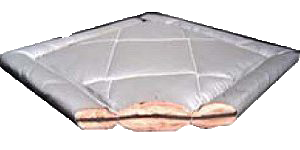

The ABA “Barrier septum Composite” is a non-reinforced loaded vinyl noise barrier sandwiched between two layers of fiberglass. A variety of facings are available including our standard industrial grade vinyl facing, an economy scrim facing and a silicone facing for high temperature or outdoor applications. Curtain quilted fiberglass panels are typically constructed with grommets across the top and mating hook and loop closures on the vertical edges.

Industrial & Flexible Barriers

Rolls measuring 4′ x 25′ are available with edges bound or unbound. All products have a Class A flammability rating (per ASTM E-84 ). Use as a divider wall when separating two noisy areas that require absorption. Use to line the perimeter of a building Use anywhere a decoupler/barrier/absorber is required. Vinyl facings are available in white, tan, black, or gray Diamond patterns or straight stitch patterns are available. PDF Spec Sheets: ABA-111SABA-111ABA-112ABA-121 “ABA” composite features a non-reinforced loaded vinyl noise barrier septum (middle) with a quilted fiberglass sound insulation absorber on BOTH sides. Ideally suited as an acoustical liner, the inner layer of quilted fiberglass panel decouples the barrier form the surface to improve its noise blocking ability while the outer layer adds sound absorption to the treated environment. Composites offer maximum noise reduction on any application by combining sound absorption and noise barrier materials. These composites are available in a barrier backed or barrier septum configuration utilizing a variety of quilted fiberglass panel absorbers and flexible noise barriers. Sound Absorption/Noise Barrier Composites are supplied as roll goods, finished panels, enclosure systems, acoustical jackets and die-cut pieces.

Product Features:
  • Maximum noise reduction by combining sound absorber and noise barrier
  • Sound Absorption Rating to NRC-1.05
  • Transmission Loss Rating to STC-32
  • Offered in two styles with a variety of combinations
  • Acoustical liners, jackets, wraps and panels
  • Available in curtain panels, bound or unbound rolls, custom fabrications or die-cut pieces
  • Flexible composites conform to any shape
  • Fire safe and low smoke emissions per ASTM E-84, Class 1
Available Barriers:
  • ABA products utilize a flexible 1 lb. PSF non-reinforced loaded vinyl noise barrier septum (1BNR).
  • Also available with a 2lb. PSF or ½ lb. PSF barrier

The most effective noise reduction products combine both sound absorption and noise barrier properties. Tested under strict compliance to appropriate ASTM standards, we offer the following results for Fiberglass sound insulation and Quilted fiberglass panels.

Acoustical Data:

Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) – ASTM E-90 & E 413

ProductThickness (In./Nom.)Wt. Lb./S.F.1252505001K2K4KSTC
ABA-11121.512162740444329
ABA-12122.519222840566133

Sound Absorption Data-Absorber Component Random Incident Sound Absorption – ASTM C 423

 Octave Band Center Frequencies (Hz)
Product1252505001K2K4KNRC
ABA 2" thick0.190.990.960.80.570.330.85

* The tables on this page refer to some of the more common ABA composites. There are many others which combine the wide variety of barriers and quilted fiberglass absorbers available to address any industrial application.


Acoustic Curtains - BA

IES 2000’s “BA” composite features a reinforced loaded vinyl noise barrier with a quilted fiberglass sound insulation absorber on one side. The rugged durable exterior barrier is commonly used as a wrap or acoustical jacket due to its ability to conform to any shape. The quilted fiberglass panel layer decouples the noise barrier to enhance its acoustical performance. IES 20O0, LLC BA’s Noise Barrier/Sound Absorber Composite offers the benefits of a noise barrier and a sound absorber composite. The BA consists of a vinyl-coated-fiberglass-cloth facing on 2” quilted fiberglass that is bonded to a reinforced 1-lb psf. loaded vinyl barrier.

Acoustic Curtains - BA

Curtain panels are constructed with grommets across the top and Velcro along the vertical edges. Rolls are available 54” wide x 25’ long and can be supplied with edges bound or unbound (note: barrier is 54” wide, quilt is held 3” in from each vertical edge, and measures 48”). PDF Spec Sheets BA-11(S)BA-11BA-21(S)BA-21BB-RP Acoustical Roof panel

Applications:

Typically used as curtain panels in acoustical curtain enclosures where abuse resistance or excellent durability as well as maximum noise reduction is required. Frequently used as sliding doors on acoustical curtain enclosures, or as a temporary noise barrier on outdoor construction projects. Specialty composites can incorporate rigid fiberglass board, various facing and different weighs of barrier. Applications include plenum barriers, engine compartment liners, acoustical jackets, pipe lagging, and any area where both sound absorption and noise barriers are required.

Product Features:
  • Vinyl coated fiberglass cloth facing on 2” quilted fiberglass/ 1lb-psf reinforced loaded vinyl barrier
  • Flammability/Flame Spread: 23.0
  • Flammability/Smoke density: 30.0
  • Nominal thickness: 2.0 inches
  • Temperature range: -20° to +180° F
  • Standard width: 54” wide
  • Roll length: 25’ long
  • Weight: 1.5 lb psf

The most effective noise reduction products combine both sound absorption and noise barrier properties. Tested under strict compliance to appropriate ASTM standards, we offer the following results.

Acoustical Data:
Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) - ASTM E-90 & E 413
ProductThickness
(In./Nom.)
Wt. Lb./S.F.1252505001K2K4KSTC
BA-2122.513202940505532
BA-1111.311162430353527
BA-21-S22.513202940505532
BA-11-S11.311162430353527
Sound Absorption Data-Absorber Component Random Incident Sound Absorption - ASTM C 423
Octave Band Center Frequencies (Hz)
Product1252505001K2K4KNRC
BA 1" thick0.120.470.850.840.640.620.7
BA 2" thick0.120.270.961.131.080.990.85
BA 4" thick0.210.891.091.171.131.071.05

* The tables on this page refer to some of the more common BA composites. There are many others which combine the wide variety of barriers and quilted fiberglass absorbers available to address any industrial application.

Flexible Barriers

1BC Noise Barrier

1 Pound Per Square Foot Transparent PVC Barrier

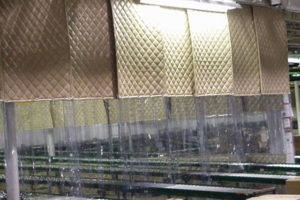

1BC is a transparent poly-vinyl chloride noise, wind and thermal barrier. It is designed to minimize the passage of sound, heat, cold, or wind from one area to another while offering maximum visibility. Offers significant noise reduction while allowing for visibility and easy access.

  • Available in a USDA approved version
  • Rolls available 48″ wide up to 60′
  • Strips available 16″ wide up to 100′ long

PDF Spec Sheet: 1BC Data Sheet

Flexible Barriers

Applications:

IES – 2000’s 1BC is available in roll form (up to 60′ long), or in fabricated panels with grommets at the top and Velcro seals along each vertical edge. Standard panel width is 48″, length as required. Custom sizes are available. In strip form rolls are available up to 100′ long. Strips cut to length are available with mounting holes punched 2″ on center.

Product Data:
  • 1 Pound Per Square Foot Transparent PVC Barrier
  • Standard width: 48″ sheet/roll, 16″ strips
  • Temperature Range: -20° F to +150° F

Acoustical Data: Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) ASTM E-90

 Octave Band Center Frequencies (Hz)
Product1252505001K2K4KSTC
1BC13172226323726

1BNR Noise Barrier

1 Pound Per Square Foot Non-Reinforced Loaded Vinyl Barrier

1BNR is a flexible non-reinforced loaded vinyl barrier that is designed to reduce the transmission of noise through walls, ceilings, and floors. Also used as a noise barrier component in acoustical composites.

  • Rolls are available 54″ wide up to 60′ long
  • Limp, flexible, formable, versatile
  • High tear and tensile strength
  • Extremely easy to install

PDF Spec Sheet: 1BNR Data Sheet

1BNR Noise Barrier

Applications:

Typically used as a noise barrier in gypsum wallboard and stud construction to substantially improve transmission loss between rooms. Also, utilized as a barrier septum material in acoustical curtain construction to form ABA style composites. Product Data:

  • 1 Pound Per Square Foot  Non-Reinforced Loaded Vinyl Barrier
  • Nominal thickness: 48″ sheet/roll, 16″ strips
  • Standard width: 54″ wide
  • Roll length: 30′ or 60′ long
  • Weight: 1.0 lb psf
  • Tensile (PSI): 220
  • Elongation: 140%
  • Service Temperature: -20° F to +180°

Acoustical Data: Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) – ASTM E-90 & E 413

Octave Band Center Frequencies (Hz)
Product1252505001K2K4KSTC
1BNR13172226323726

1BR Noise Barrier

1 Pound Per Square Foot Reinforced Load Vinyl Barrier

1BR is a flexible reinforced loaded vinyl noise barrier featuring an internal reinforcement to offer maximum tear strength and durability. 1BR Panels can be used where a noise barrier wall is required. It is also commonly used in conjunction with IES -2000’s Quilted Fiberglass Panels Absorbers to form BA style acoustical curtain composites. 1BR is also available in a USDA approved grade.

  • Rolls are available 54″ wide up to 60′ long
  • Curtain Panels available with grommets and Velcro
  • Limp, flexible, formable, versatile
  • High tear and tensile strength, Extremely durable

PDF Spec Sheet: 1BR Data Sheet

1BR Noise Barrier



Applications:

Typically used where a rugged, tear resistant noise barrier is required. Also used as a barrier back material in BA style Acoustical Curtain Panels in an Acoustical Curtain Enclosure, acoustical jacket or wrap, and to serve as an accordion fold acoustical door. Suitable for outdoor use. Available in gray, tan, blue or olive drab. Additional sizes, fiberglass core densities and thicknesses available.

Product Data:
  • 1 Pound Per Square Foot Reinforced Load Vinyl Barrier
  • Standard thickness: 0.107 inch
  • Standard width: 54″ wide
  • Roll length: 60′ long
  • Weight: 1.0 lb psf
  • Tensile (PSI): 900 lb/ in2
  • Tear (pound force): 70 lb/ in.
  • Service Temperature: -20° F to +180°
Acoustical Data:

Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) ASTM E-90 & E 413

Octave Band Center Frequencies (Hz)
Product1252505001K2K4KSTC
1BR13172226323726

2BNR Noise Barrier

2 Pound Per Square Foot Non-Reinforced Load Vinyl Barrier

2BNR is a flexible non-reinforced loaded vinyl noise barrier that is designed to reduce the transmission of noise through walls, ceilings, and floors. 2B NR is a two-pound per sq. ft. material specifically designed to offer greater noise attenuation than standard one-pound per sq. ft. products, primarily at low frequencies.

  • Rolls are available 54″ wide up to 60′ long
  • Easy to install
  • Limp, flexible, formable, versatile
  • High tear and tensile strength

PDF Spec Sheet: 2BNR Data Sheet

2BNR Noise Barrier

Applications:

Typical uses include as a noise barrier in dry wall and stud construction to substantially improve transmission loss between rooms. Also, utilized as a barrier septum material in acoustical curtain and foam composites.

Product Data:
  • 2 Pound Per Square Foot Non-Reinforced Load Vinyl Barrier
  • Nominal thickness: 0.23 inches
  • Standard width: 54″ wide
  • Roll length: 60′ long
  • Weight: 2.0 lb psf
Acoustical Data:

Sound Transmission Loss (dB) Octave and Center Frequencies (Hz) ASTM E-90 & E 413

Octave Band Center Frequencies (Hz)
Product1252505001K2K4KSTC
2BR16222632354031
